Ubiquiti Building-to-Building Bridge Network Bridge White
SPECIFICATIONS
Mechanical
Dimensions
140 x 140 x 90 mm
Weight
376 g
Enclosure
UV-Resistant Polycarbonate
Mounting
Pole-Mount (Kit Included)
Wall-Mount (Not Included)
Wind Loading
56 N @ 200 km/h
Wind Survivability
200 km/h
Antenna Gain
2.4 GHz (BLE) - 2 dBi
5 GHz - 10 dBi
60 GHz - 17.2 dBi
GPS
Yes
Max. TX Power
5GHz - 25 dBm
60GHz - 32 - 36.5dBm
60 GHz Elevation Beamwidth
30°
60 GHz Azimuthal Coverage
±60°
Interfaces
Networking - (1) 10/100/1000 Ethernet Port
Management - Bluetooth
Power Method
802.3af Supported
Passive Power over Ethernet (48V)
Power Supply
UniFi PoE Switch
48V, 0.32A Gigabit PoE Adapter (Included)
Max Power Consumption
11W
ESD/EMP Protection
± 24kV Contact/Air
Operating Temperature
-40 to 70° C
Operating Humidity
5 to 95% Noncondensing
Certifications
CE, FCC, IC
Operating Frequency (MHz)
Worldwide
5150 - 5875
57,000 - 66,000
US/CA
U-NII-1: 5150 - 5250
U-NII-3: 5725 - 5850
57,000 - 66,000
Bluetooth (MHz)
Worldwide
2400 - 2483.5
Important Warranty Information:
•2-Year Warranty: Current promotion running from March to December 2024, all Ubiquiti items purchased during this period come with 2-year warranty.
•For items purchased outside the specified period (March to December 2024), the standard Manufacturer’s warranty duration is 1 year.

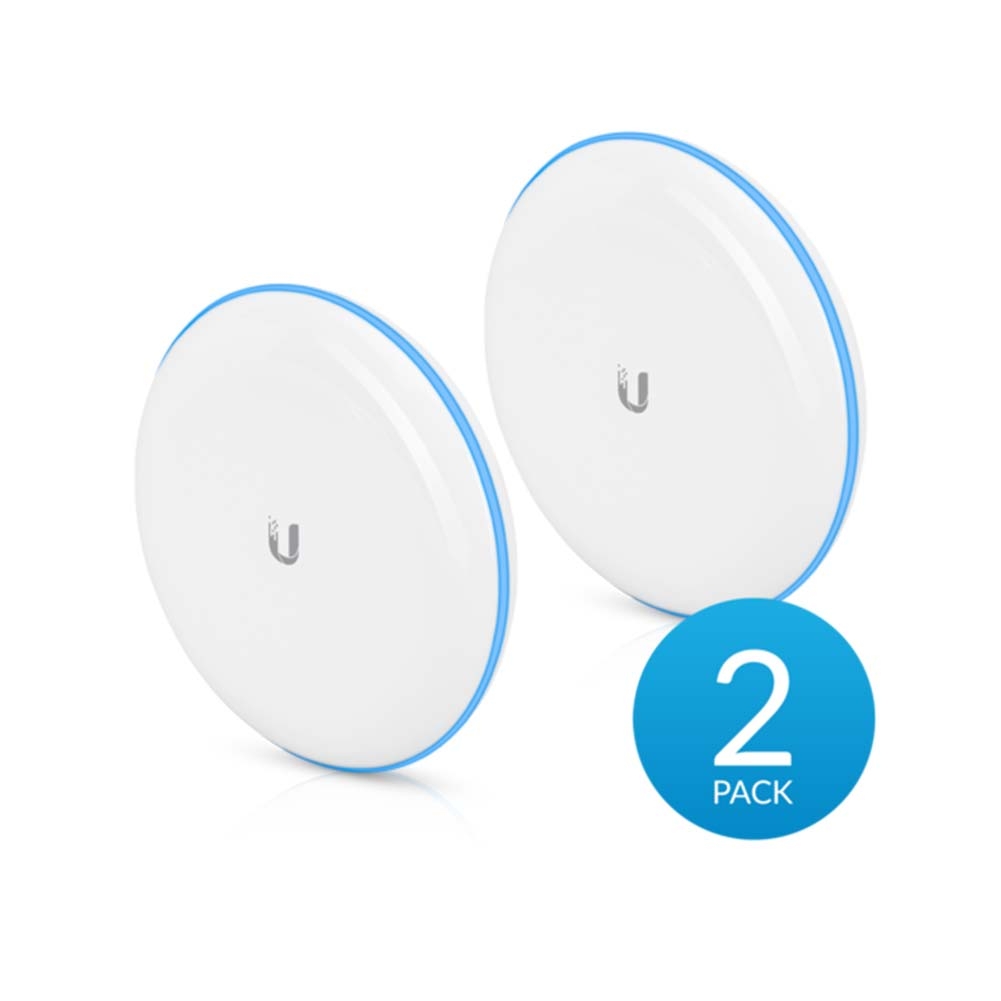

Ubiquiti Building Bridge (2 Pack)
SKU:UBB
Features:
•A 60 GHz wireless point-to-point bridge.
•500 m (1,640 ft) maximum range
•60 GHz & 5 GHz dual-radio redundancy
•Includes PoE power adapters
•Built-in LED alignment indicators
•Sold as 2 Pack
Note. Cannot be set up standalone and requires a UniFi gateway or self-hosted Network server.
Package Contents:
UniFi Building-to-Building Bridge (x2)
Ball joint mount (x2)
Lock ring (x2)
Metal strap (x2)
Gigabit PoE (48V, 0.32A) with mounting bracket (x2)
Power cord (x2)
